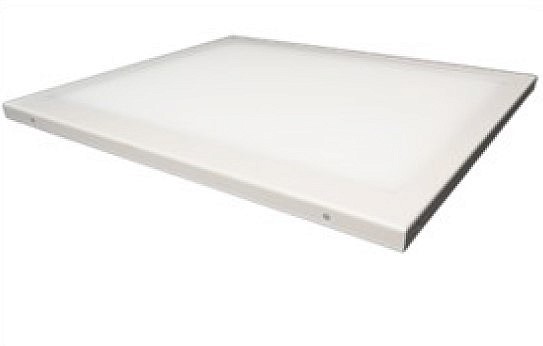

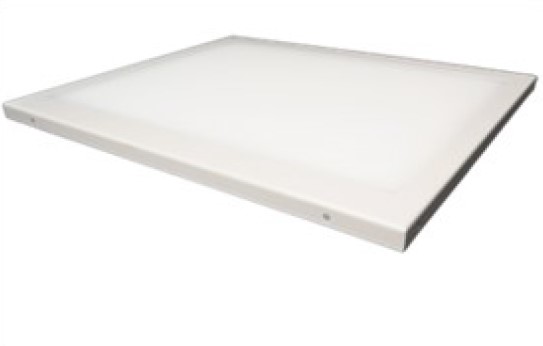

UnityColor^® Board2light - flat lighting table with LED-lighting

Lighting board with LED edge lighting for visual checks of foils, glass and liquids in the industry

Light table for industrial usage and in the printing industry with long-lasting high-quality LED technology for the quality control of plastics, glass, foils and liquids.

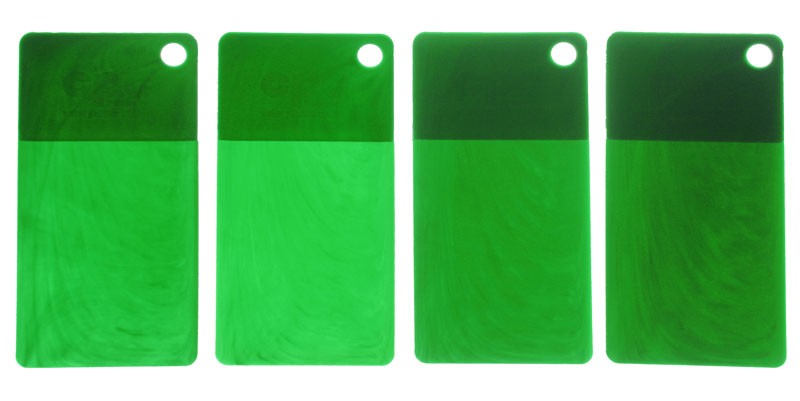

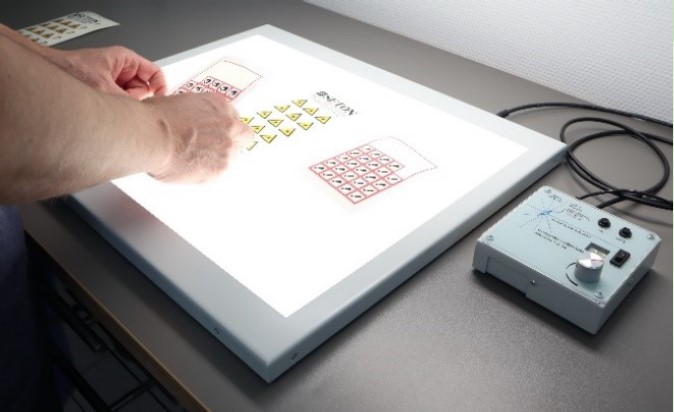

Transmitted light panel for evaluating transparent, translucent and opaque materials such as plastic, glass, foil or liquids as well as for slides and films, for drawing and tracing. Ideal for testing the homogeneity and translucency of small samples. Inclusions, streaks or different material thicknesses can be recognized immediately. The age-resistant plastic disc and the uniform neutral illumination guarantee trouble-free viewing.

Light Table in Industry Quality for Long-Term-Usage

• A4 - illuminated area 350 x 250 mm on 11000 lx / Masses WDH 400 x 330 x 20 mm
• A3 - illuminated area 450 x 350 mm on 8500 lx / Masses WDH 500 x 430 x 20 mm (choose model)

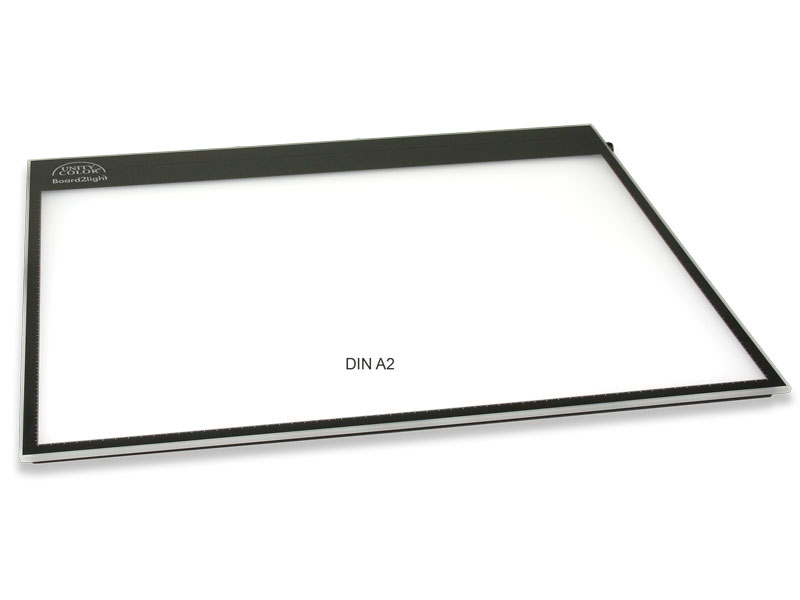

• A2 - illuminated area 650 x 450 mm on 6500 lx / Masses WDH 600 x 450 x 20 mm (choose model)
• other sizes up to 1000 x 1000 mm on request

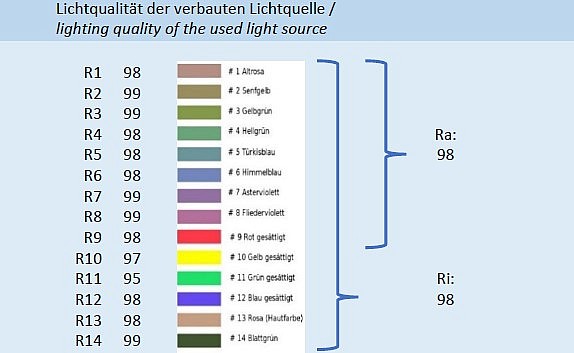

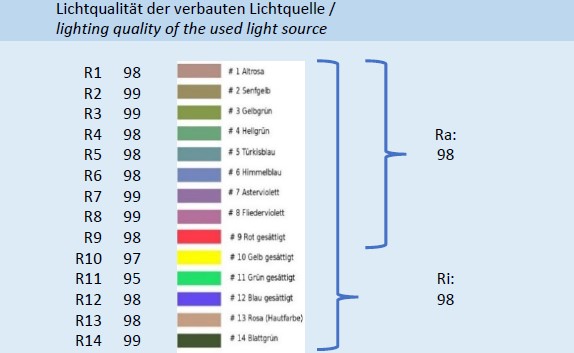

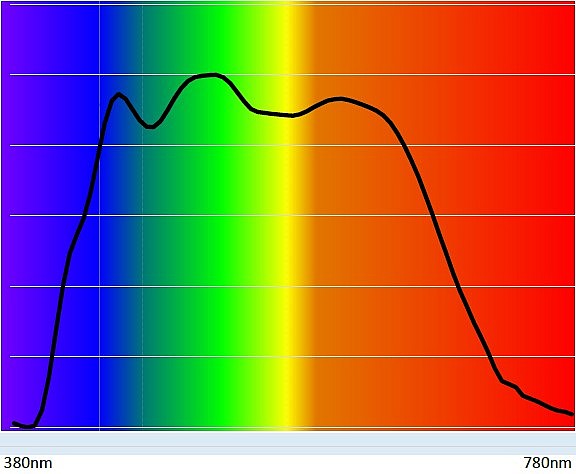

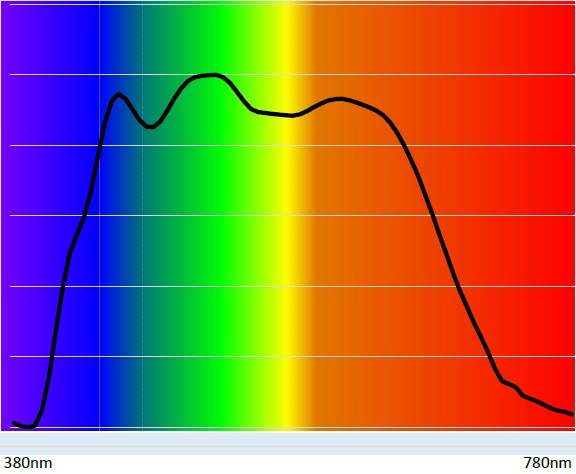

• Daylight quality (without UV), light color 5300 K, CRI Ra >97, Ri >97
• 5 mm matte antireflex worktop diffusor sheet, recessed evenly 2 mm in the frame
• Body 2 mm aluminium, powder coated RAL 7035
• Standard delivery with power supply, without switch, without dimmer

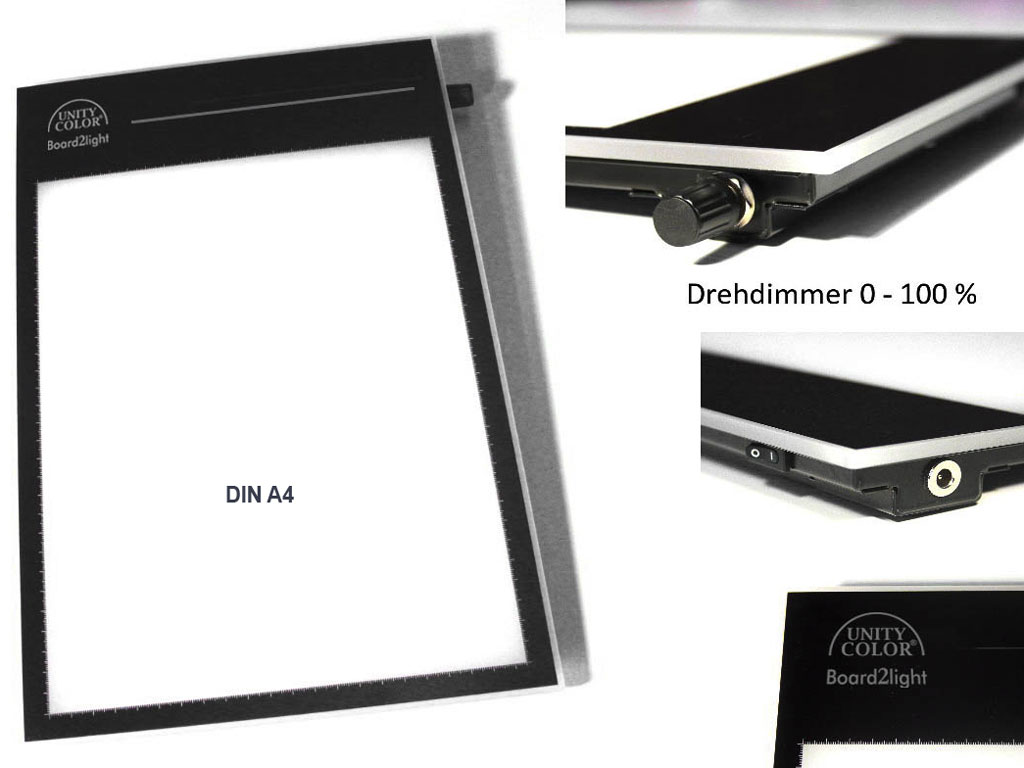

• Optional with controller dimmable from 100% - 0% (choose above)
• Good heat dissipation through a sturdy aluminum housing, surface temperature on long-term-usage ca. 27° C
• Maintenance-free LED edge lighting in the rear housing wall, no heating of the illuminated area
• Life expectancy about 50,000 hours
• "Keyholes" for wall mounting on the back
• Degree of protection IP53 protection against splash water, on flat usage on a table
• Safety 24 V through plug-in power supply
• Weight 3,5 kg (A4 version)
• 1 year warranty

Scope of delivery:

• Board2light with manual
• Power supply 230 V / 24 V with plug for Europe

Other light sources as 6500 Kelvin we will offer on request.
