NCS Gloss Scale Fan Deck

NCS Gloss Scale 7-step Fan Deck

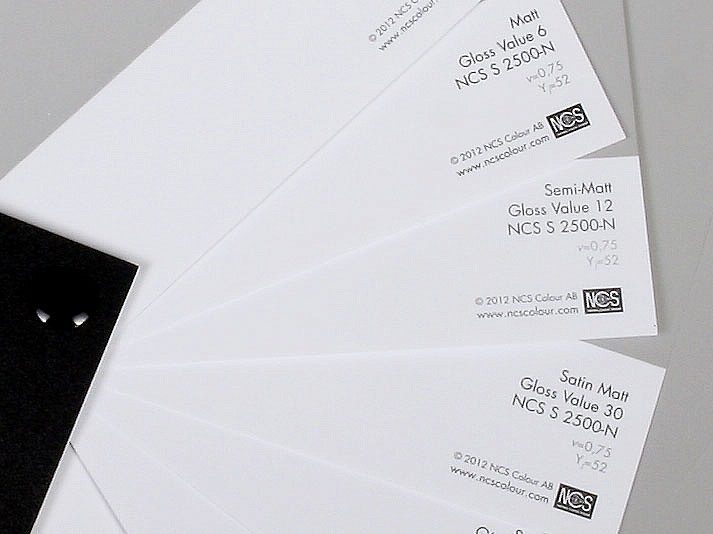

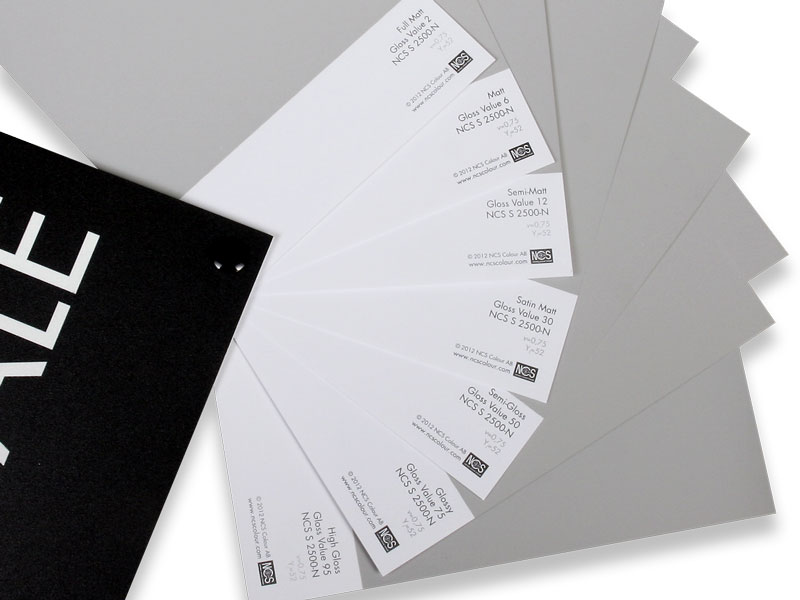

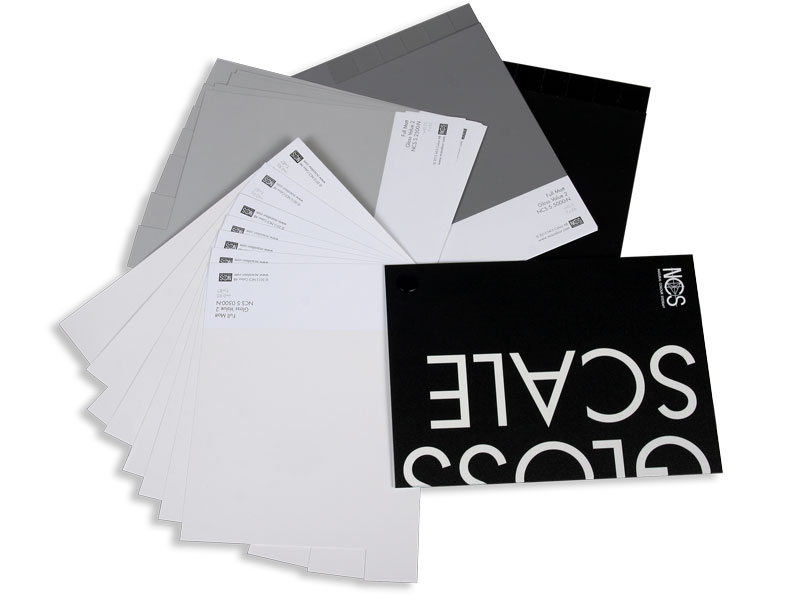

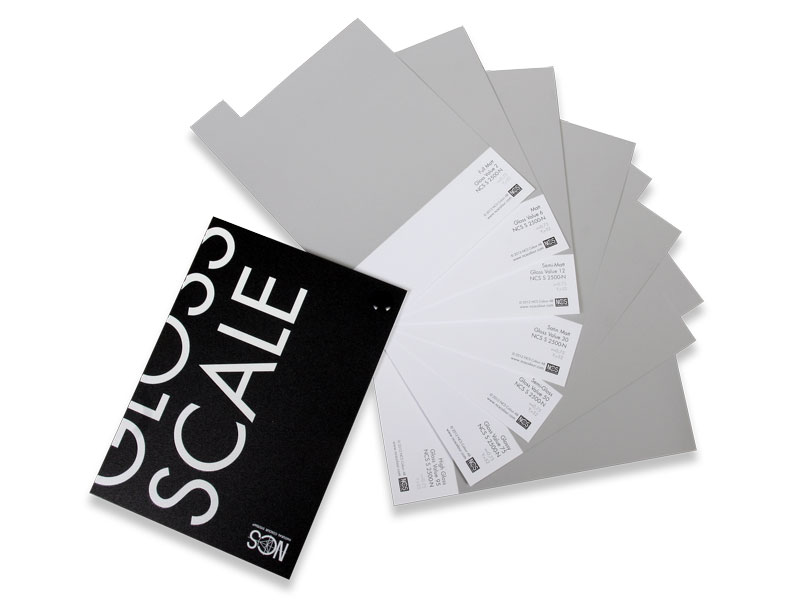

The NCS Gloss Scale is a tool for visually assessing gloss on surfaces. This handy pocket-sized gloss fan is a valuable tool for all professionals who are involved in defining and specifying the level of gloss on surfaces. It is suitable for designers, as a specification for production operations and for quality control. The fan shows 4 neutral NSC colors from white to black, with 7 gloss levels for each color, ranging from full matt to high gloss in top quality lacquer coating. The full surface coating allows users to make direct comparisons with objects for assessment.

• Size of gloss fan: 100 x 140 mm
• 4 colors in NCS grayscale: NSC S 0500-N white, NSC S 2500-N light gray, NSC S 5000-N medium gray, NSC S 9000-N black
• 7 gloss levels per color:
  - Full matt, gloss level 2
  - Matt, gloss level 6
  - Semi-matt, gloss level 12
  - Satin matt, gloss level 30
  - Semi-gloss, gloss level 50
  - Gloss, gloss level 75
  - High gloss, gloss level 95
• Fully coated
• Gloss level, NCS code and lightness values are printed beneath the color sample in each case
• Graded according to visually level gloss steps
• Gloss measured (reflectometer values) in accordance with ISO 2813, 60°
• Description provided in: English, German, Chinese and Swedish

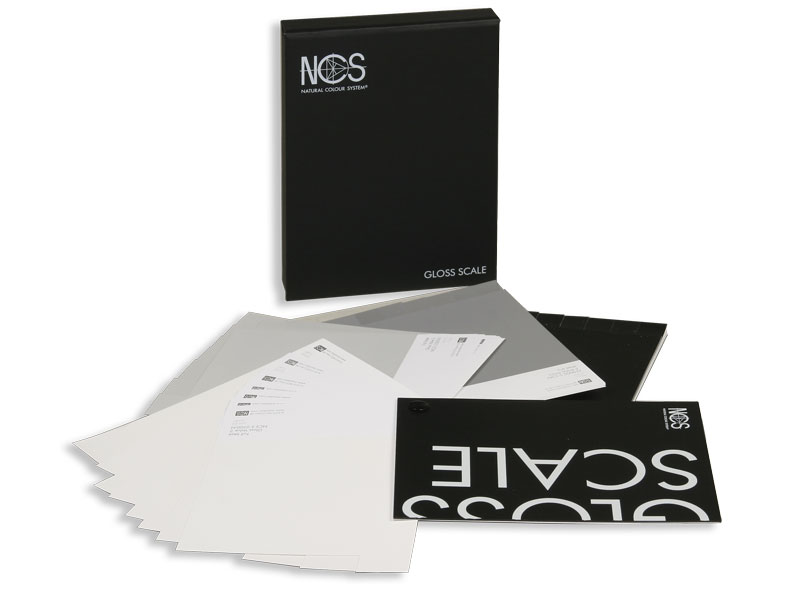

• Supplied in a sturdy black protective box incl. a special cloth for cleaning gloss samples
• Production controlled by NCS Quality Center in compliance with ISO 9001:2008 certification

TIP: The fan is held together with a removable fastener. To make it easier to work with the gloss samples, simply unscrew the fastener and use the samples separately.
